NOMINAL SIZE (inch) |
ID X OD
(m / m) |
PRESSURE at 20¢XC |
STANDARD
LENGTH
( M ) |
WORKING
( kg/cm2 ) |
BURSTING
( kg/cm2 ) |
5 / 16 |
8 X 14 |
7.0 |
20.0 |
100 |
3 / 8 |
9 X 15 |
7.0 |
20.0 |
100 |
1 / 2 |
12 X 18 |
6.0 |
18.0 |
100 |
5 / 8 |
15 X 21 |
5.5 |
16.0 |
100 |
3 / 4 |
19 X 26 |
5.0 |
15.0 |
50 |
1 |
25 X 33 |
5.0 |
15.0 |
50 |
1 - 1 / 4 |
32 X 41 |
4.0 |
11.0 |
50 |
1 - 1 / 2 |
38 X 48 |
4.0 |
11.0 |
50 |
1 - 5 / 8 |
41 X 51 |
4.0 |
11.0 |
50 |
1 - 3 / 4 |
45 X 56 |
4.0 |
11.0 |
50 |
1 - 7 / 8 |
48 X 60 |
3.0 |
8.0 |
50 |
2 |
50 X 62 |
3.0 |
8.0 |
50 |
2 - 1 / 4 |
58 X 72 |
3.0 |
8.0 |
30 |
2 - 3 / 8 |
61 X 76 |
3.0 |
8.0 |
30 |
2 - 1 / 2 |
64 X 80 |
3.0 |
8.0 |
30 |
3 |
75 X 91 |
2.5 |
7.0 |
30 |
3 - 1 / 2 |
89 X 107 |
2.5 |
7.0 |
20 |
4 |
100X118 |
2.5 |
7.0 |
20 |
|
|
|
|
|
|
|
|
 |
|
|
¡E |

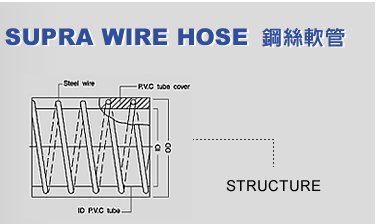

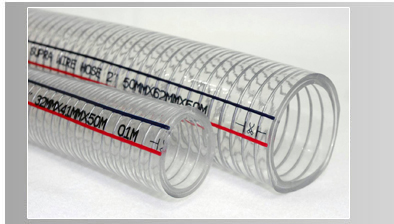

Smooth
inner wall and outer surface made of special soft PVC. |
|
¡E |
Reinforced with spiral steel wire. |
|
¡E |
Superior resistance against inside and outside pressure. |
|
¡E |
It is
transparent and the movement of materials can be seen. |
|
|
|
|
|
 |
|
|
¡E |
For delivering air, liquid, fluid and so on. |
|
¡E |
Suction and conveyance of powder, granule, pulverized body or small substances. |
|
¡E |
Water supplying to the cleansing system for plants and equipment. |
|
¡E |
Any corrosive liquid possibly shortens the life of service. |
|
| ¡@ ¡@ |
|
¡@ |
 |
