SIZE (I/D) |
WALL
THICKNESS |
WIRE
DIAMETER |
PITCH |
STANDARD
LENGTH |
Load Capacity
負荷能力 |
VACUUM
負壓 |
PRESSURE
壓力 |
規格
(內徑) |
管壁厚度 |
鋼線直徑 |
鋼線隔距 |
每捲長度 |
mbar |
bar |
32mm |
0.4mm |
1.0mm |
16mm±1 |
15M<公尺> |
250 |
0.6 |
38mm |
0.4mm |
1.0mm |
16mm±1 |
15M<公尺> |
250 |
0.6 |
51mm |
0.4mm |
1.2mm |
16mm±1 |
15M<公尺> |
200 |
0.5 |
63mm |
0.4mm |
1.2mm |
16mm±1 |
15M<公尺> |
200 |
0.5 |
76mm |
0.4mm |
1.2mm |
16mm±1 |
15M<公尺> |
150 |
0.4 |
102mm |
0.4mm |
1.6mm |
25mm±1 |
15M<公尺> |
75 |
0.25 |
127mm |
0.4mm |
1.6mm |
25mm±1 |
15M<公尺> |
75 |
0.25 |
152mm |
0.4mm |
1.6mm |
25mm±1 |
15M<公尺> |
75 |
0.25 |
203mm |
0.4mm |
2.0mm |
25mm±1 |
15M<公尺> |
50 |
0.15 |
254mm |
0.4mm |
2.0mm |
25mm±1 |
10M<公尺> |
20 |
0.1 |
|

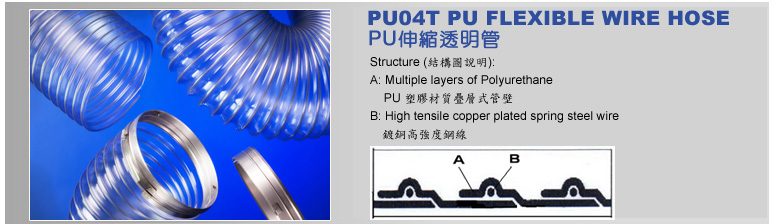

Wall made of microbe , hydrolysis and abrasion resistant Polyurethane (wall thickness at 0.4mm and transparent), and copper plated high tensile spring steel wire spirally embedded into the wall; very light and extreme flexibility with good tensile for elongation freely.
管壁透明和光滑亮麗是由能抗菌及抗水解耐磨 PU 塑膠製成,管壁厚度為 0.4mm 和藏入伸張力高強而有鍍銅的螺旋型鋼線,使管更輕巧和柔軟,可收壓成短小或隨自由延伸長度。 |
Temperature Range 耐溫範圍 : - 40oC ~ + 90oC
(瞬間使用可達 + 125oC short term)
Standard Length: All sizes at 15 M per roll except 254mm at 10M per roll
標準長度: 每捲 15 公尺包裝 , 規格 254mm 則為 10 公尺包裝。
* Other diameters, lengths and wall thickness can be produced.
* 也可訂製其他特殊規格、長度及厚度。 |
For air-ventilation in all general projects and suitable of conveying light solids, dust in woodworking, plastic and chemical industry etc.; also acting as the peripherals of supporting mechanism controlled by the electronic appliance in the machines.
適合工業冷氣或溫室及各種場所空調設備配管用
可作排送風或吸塵、煙、木屑、粉粒和紡織毛碎等
延伸和收縮效能高,最適合工廠及電子機械周邊設備操控輔助用等. |
