¡EPU |
High physical properties, elasticity, excellent rebound,
resistance to abrasion and low temperature. It remains soft even
at a low temperature. |
|
¡ENYLON |
Excellent weather adaptability, superior resistance to pressure,
abrasion, corrosion. |
|
¡EPE |
High resistance to abrasion, acid and alkalinity. Good weather
adaptability. |
|
|

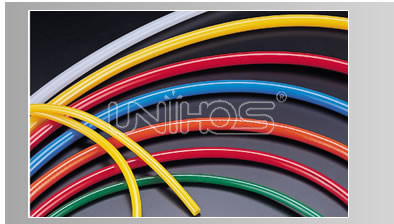

PU TUBE ( PU Pneumatic Tube )
SPECIFICATIONS :
NOMINAL |
ID x OD |
Working Pressure |
BurstingPressure |
Standard |
SIZE(OD) |
(mm) |
kg/cm2 |
kg/cm2 |
Length |
4mm |
2 x 4 |
7 |
28 |
200 M |
4mm |
2.5 x 4 |
6 |
24 |
200 M |
5mm |
3 x 5 |
6 |
24 |
200 M |
6mm |
4 x 6 |
6 |
24 |
200 M |
8mm |
5 x 8 |
7 |
28 |
100 M |
10mm |
6.5 x 10 |
7 |
28 |
100 M |
10mm |
8 x 10 |
5 |
20 |
100 M |
11mm |
8 x 11 |
6 |
24 |
100 M |
12mm |
8 x 12 |
7 |
28 |
100 M |
|
|
|
|
|
3/16" |
3 x 5 |
6 |
24 |
200 M |
1/4" |
4.3 x 6.3 |
6 |
24 |
200 M |
5/16" |
6 x 8 |
6 |
24 |
100 M |
3/8" |
6.5 x 9.5 |
6 |
24 |
100 M |
1/2" |
9.6 x 12.6 |
6 |
24 |
100 M |
|
|
|
|
 |
| |
| |
|
|
¡E |
For
all purposes in industry and others etc. |
|
| |
NYLON Tube
SPECIFICATIONS : |
NOMINAL |
ID x OD |
Working Pressure |
BurstingPressure |
Standard |
SIZE(OD) |
(mm) |
kg/cm2 |
kg/cm2 |
Length |
4mm |
2 x 4 |
22 |
90 |
200 M |
4mm |
2.5 x 4 |
20 |
80 |
200 M |
5mm |
3 x 5 |
20 |
80 |
200 M |
6mm |
4 x 6 |
20 |
80 |
100 M |
8mm |
6 x 8 |
15 |
60 |
100 M |
10mm |
7.5 x 10 |
15 |
60 |
100 M |
12mm |
9 x 12 |
15 |
60 |
100 M |
|
|
|
|
|
1/8" |
2.2 X 3.175 |
20 |
80 |
200 M |
3/16" |
3 x 5 |
20 |
80 |
200 M |
1/4" |
4.57 x 6.35 |
15 |
60 |
100 M |
5/16" |
6 x 8 |
15 |
60 |
100 M |
3/8" |
6.99 x 9.53 |
15 |
60 |
100 M |
1/2" |
9.56x 12.7 |
15 |
60 |
100 M |
|
| |
PE Tube
SPECIFICATIONS : |
NOMINAL |
ID x OD |
Working Pressure |
BurstingPressure |
Standard |
SIZE(OD) |
(mm) |
kg/cm2 |
kg/cm2 |
Length |
4mm |
2.5 x 4 |
7 |
28 |
200 M |
5mm |
3 x 5 |
6 |
24 |
200 M |
6mm |
4 x 6 |
6 |
24 |
100 M |
8mm |
6 x 8 |
5 |
20 |
100 M |
10mm |
7.5 x 10 |
7 |
28 |
100 M |
12mm |
9 x 12 |
7 |
28 |
100 M |
|
|
|
|
|
1/4" |
4.57 x 6.35 |
5 |
20 |
100 M |
5/16" |
6 x 8 |
5 |
20 |
100 M |
3/8" |
6.99 x 9.53 |
7 |
28 |
100 M |
1/2" |
9.56x 12.7 |
7 |
28 |
100 M |
|
| |
| |
|
|
|
¡@ |
 |
